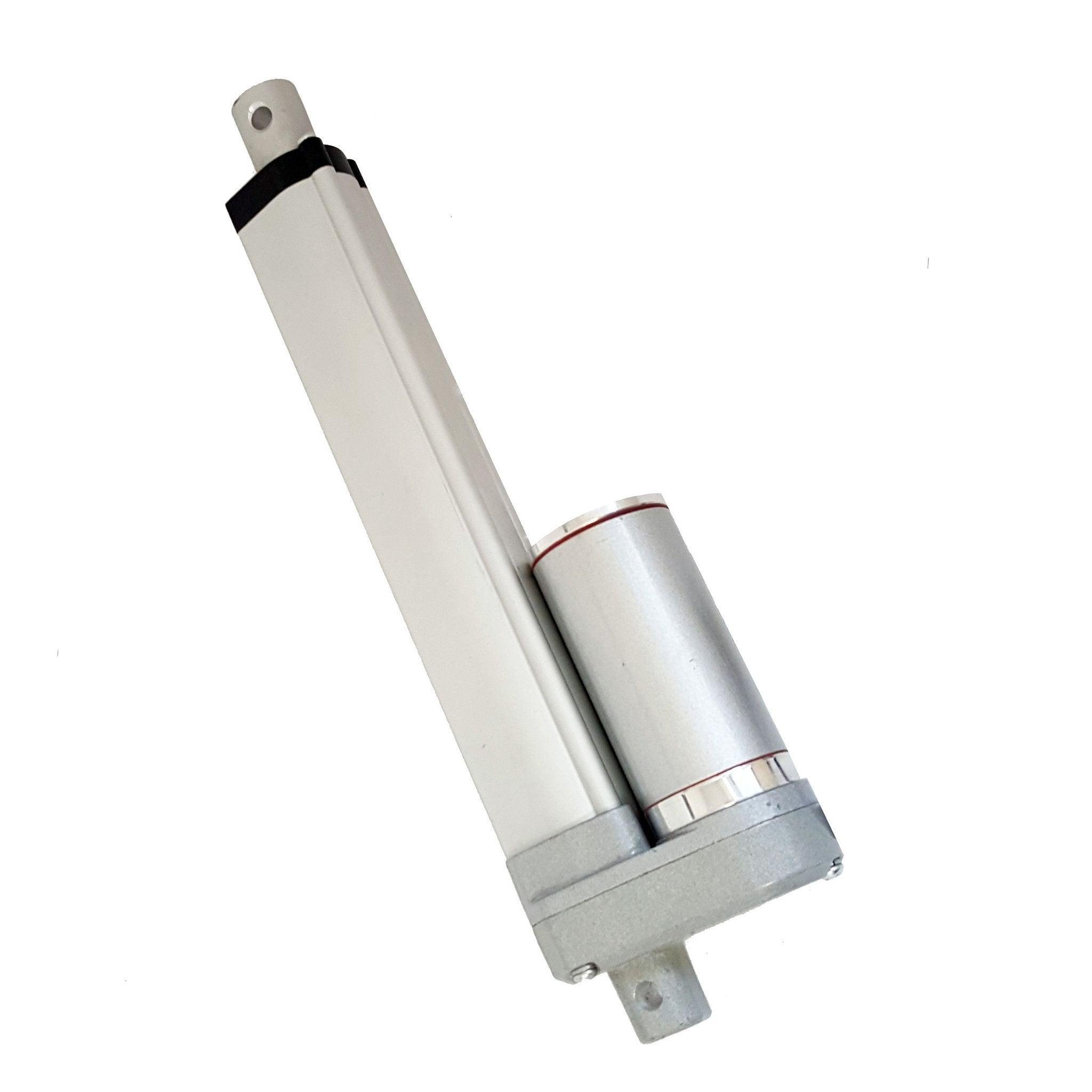

Everest 20" Inch Premium Heavy Duty Linear Actuator 5mm/s 350lbs Lift 12v

$ 78.24

This product is currently sold out.

Please fill in the form below if you'd like to be notified when it becomes available.

Input Voltage 12V DC
Stroke (Movement) 20"
Force 350lbs (1500N)
Speed (mm/sec)


IP Rating (Protection Class) - IP54

*Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment

*Water splashing against the enclosure from any direction shall have no harmful effect

Operational Temperature -4°F ~ +149°F
Noise <45db
Limit Switch Built in, Non-Adjustable
Current  6.5 Amps
Mounting Hole 6mm
Fully Retracted 24 1/4"
Full Extended 44 1/4"
Cycle 25%
Warranty 12 Months
