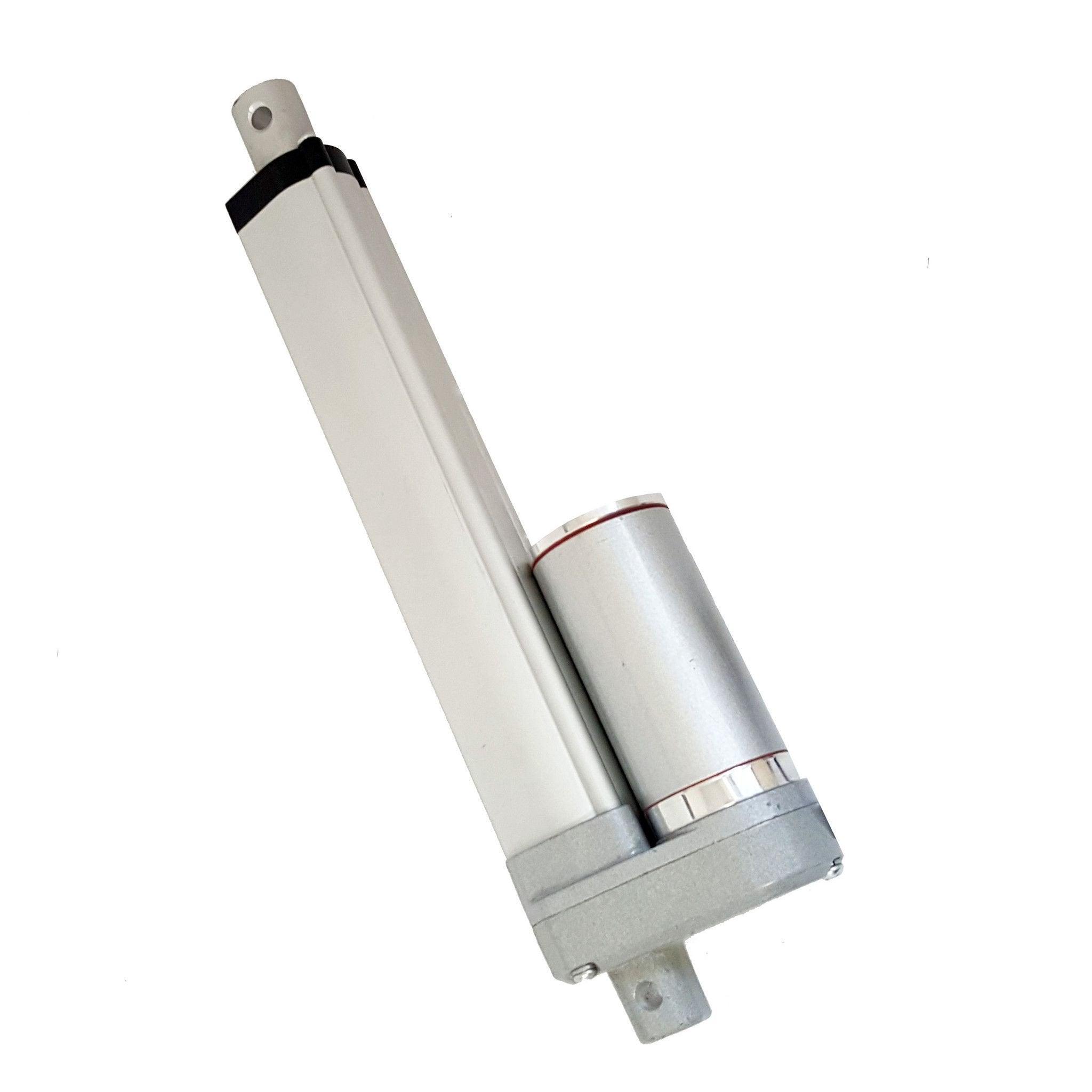

Everest 12" Inch Premium Heavy Duty Actuator 5mm/s 350lbs Lift 12v

$ 79.95

This product is currently sold out.

Input Voltage 12V DC
Stroke (Movement) 12"
Force 350lbs (1500N)
Speed (mm/sec)


IP Rating (Protection Class) - IP54

*Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment

*Water splashing against the enclosure from any direction shall have no harmful effect

Operational Temperature -4°F ~ +149°F
Noise <45db
Limit Switch Built in, Non-Adjustable
Current  6.5 Amps
Mounting Hole 6mm
Fully Retracted 16 1/4"
Full Extended 28 1/4"
Cycle 25%
Warranty 12 Months
