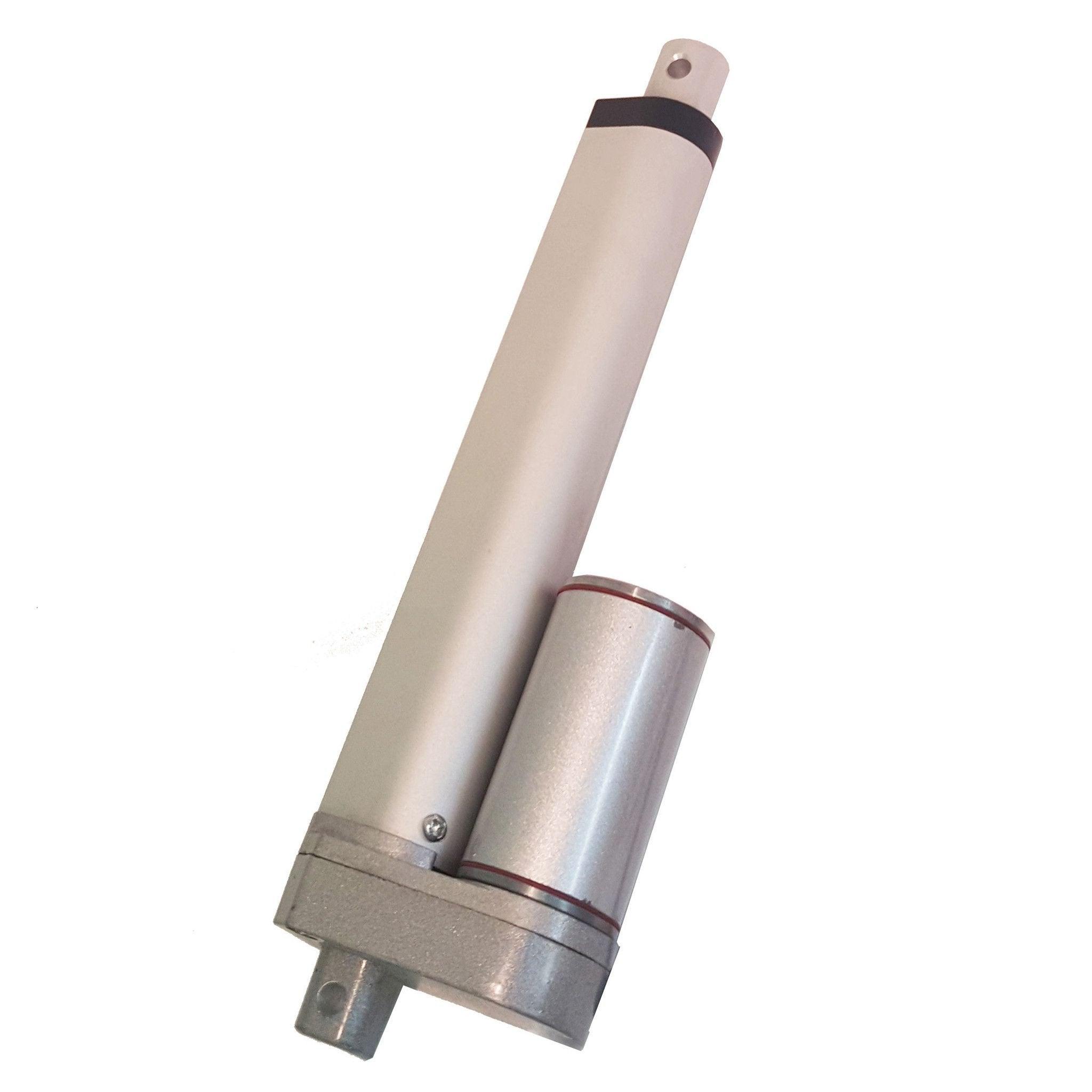

10" Inch Fast Linear Actuator 30mm/s 50lbs Lift 12v

Input Voltage 12V DC
Stroke (Movement) 10"
Force 50lbs (220N)
Speed (mm/sec)


IP Rating (Protection Class) - IP54

*Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment

*Water splashing against the enclosure from any direction shall have no harmful effect

Operational Temperature -4°F ~ +149°F
Noise <45db
Limit Switch Built in, Non-Adjustable
Current 6.5 Amps
Mounting Hole 6mm
Fully Retracted 14 1/4"
Full Extended 241/4"
Cycle 25%
Warranty 12 Months
