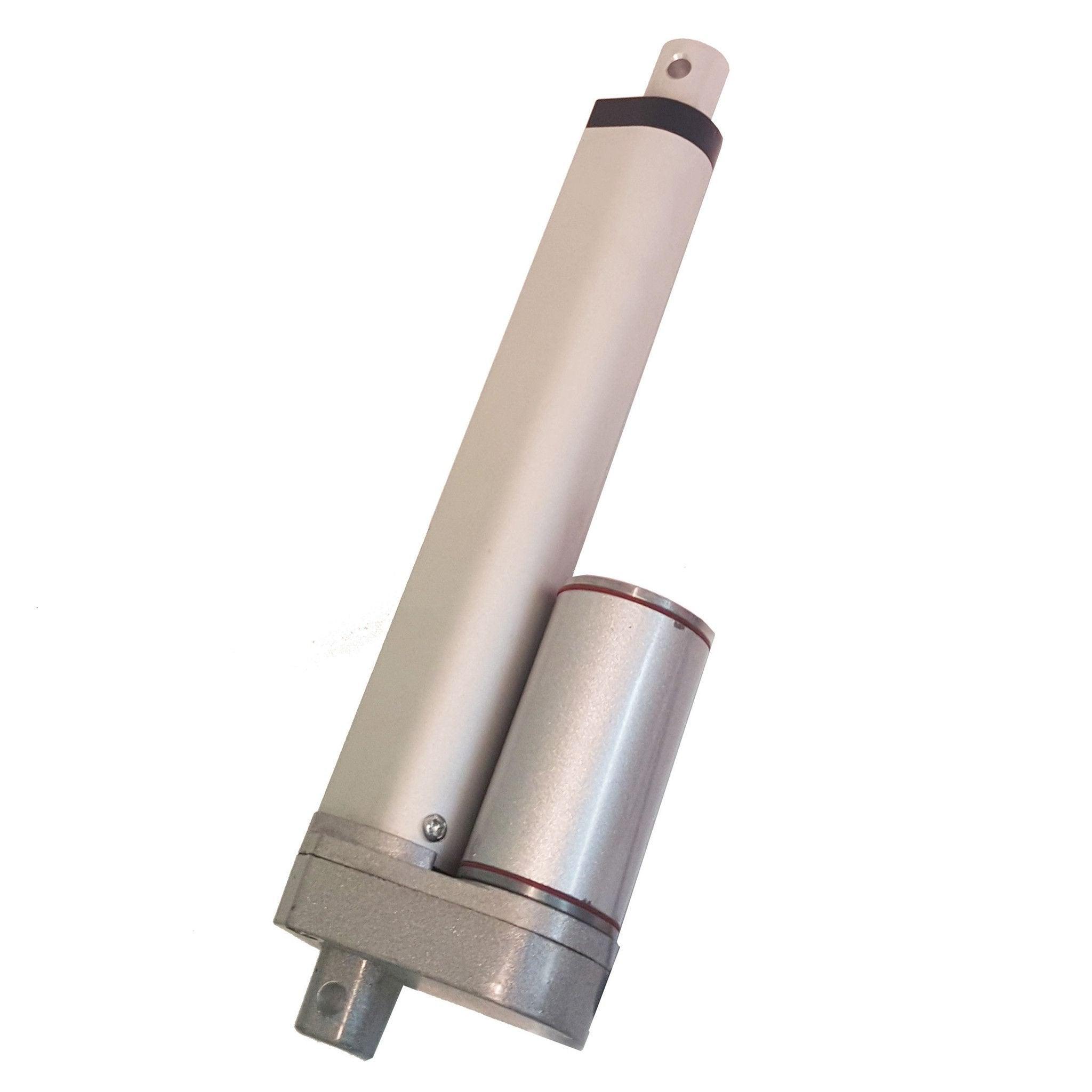

6" Inch Inch Fast Linear Actuator 30mm/s 50lbs Lift 12v

No reviews

$ 81.95

Shipping calculated at checkout

Fast Shipping

US Owned

Order Online

or by Phone


Input Voltage 12V DC
Stroke (Movement) 6"
Force 50lbs (220N)
Speed (mm/sec)

30mm/sec

IP Rating (Protection Class) - IP54

*Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment

*Water splashing against the enclosure from any direction shall have no harmful effect

Operational Temperature -4F ~ +149F
Noise <45db
Limit Switch Built in, Non-Adjustable
Current 6.5 Amps
Mounting Hole 6mm
Fully Retracted 10 1/4"
Full Extended 161/4"
Cycle 25%
Warranty 12 Months
