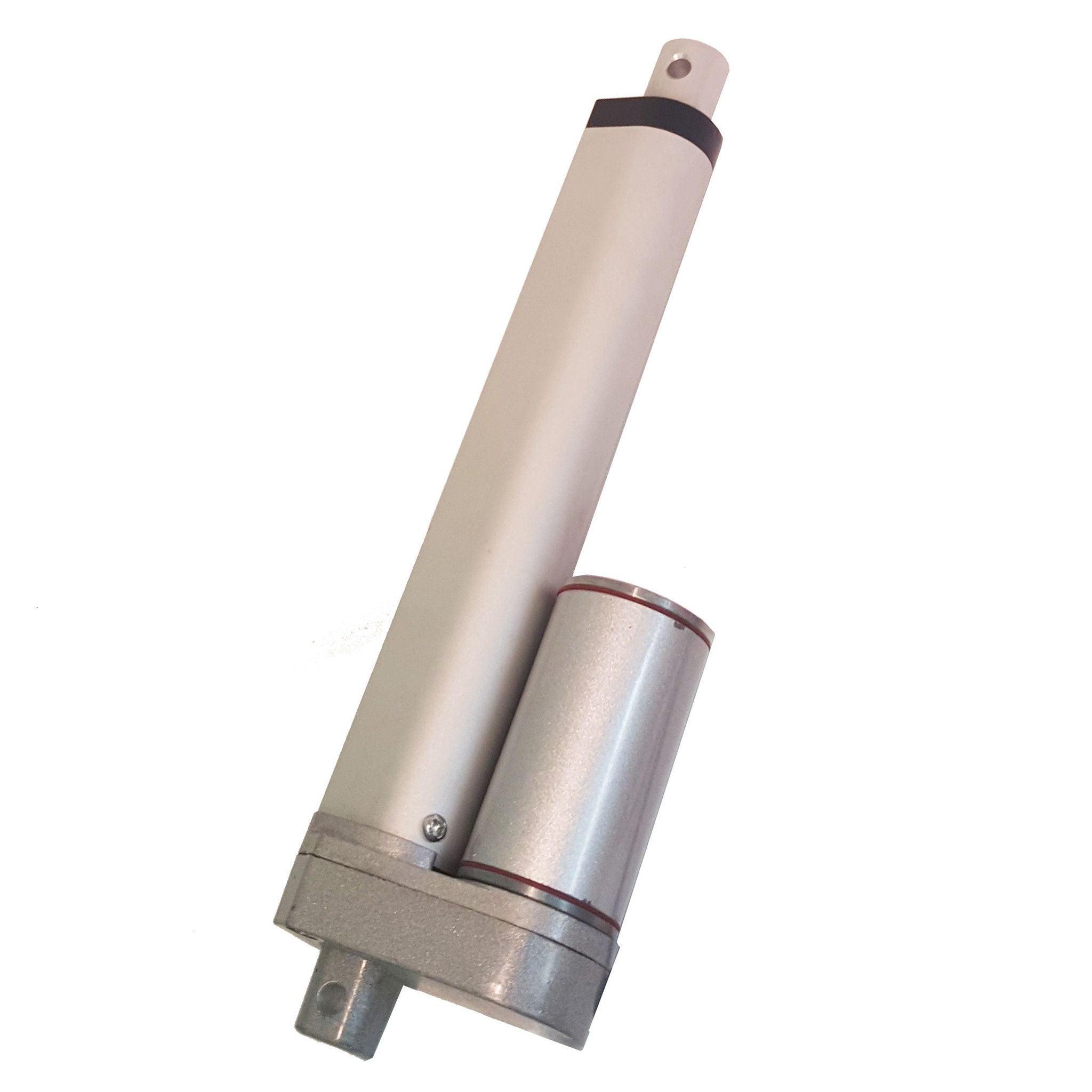

18" Inch Premium Linear Actuator 12mm/s 175lbs Lift 12v

5.0 / 5.0 based on 1 review

$ 87.95

Shipping calculated at checkout

Fast Shipping

US Owned

Order Online

or by Phone


Input Voltage 12V DC
Stroke (Movement) 18"
Force 175lbs (750N)
Speed (mm/sec)

12mm/sec

IP Rating (Protection Class) - IP54

*Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment

*Water splashing against the enclosure from any direction shall have no harmful effect

Operational Temperature -4F ~ +149F
Noise <45db
Limit Switch Built in, Non-Adjustable
Current 6.5 Amps
Mounting Hole 6mm
Fully Retracted 221/4"
Full Extended 401/4"
Cycle 25%
Warranty 12 Months
