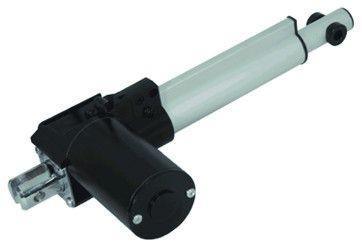

10" Inch Premium Linear Actuator with 675lbs Lift

$ 104.95

Shipping calculated at checkout

Fast Shipping

US Owned

Order Online

or by Phone


Input Voltage 12V DC
Stroke (Movement) 10"
Force 675lbs (3000N)
Speed (mm/sec)

10mm/sec

IP Rating (Protection Class) - IP54

*Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment

*Water splashing against the enclosure from any direction shall have no harmful effect

Operational Temperature -13F ~ +149F
Noise <45db
Limit Switch Inner
Current 4.5A/7.6A
Fully Retracted 16 3/4"
Full Extended 26 3/4"
Cycle 20%
Warranty

12 Month
