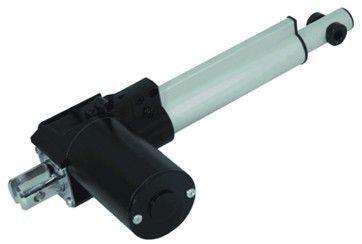

Linear Actuator EPS-05, 675lbs Lift

$ 89.20

Shipping calculated at checkout

Fast Shipping

US Owned

Order Online

or by Phone

Description Sizes Specifications Shipping Options Guides

Need a helping hand? Our linear actuators come in a wide range of sizes to help with heavy lifting! Whether you're moving heavy doors or just simply working on a school robotics project, our linear actuators are a perfect fit for your automation needs!

Data Table

Stroke Length Retracted Length (Hole-to-Hole) Extended Length (Hole-to-Hole)
1" 8" 9"
2" 9" 11"
4" 11" 15"
6" 13" 19"
8" 15" 23"
10" 16.75" 26.75"
12" 18.75" 30.75"
14" 20.75" 34.75"
16" 23.00" 39.00"
18" 24.75" 42.75"
20" 26.50" 46.50"
22" 28.50" 50.50"
24" 30.50" 54.50"
26" 32.50" 58.50"
28" 34.50" 62.50"
30" 36.50" 66.50"

Technical Information

Input Voltage 12v DC
Stroke (Movement) 1"-30"
Force 675lbs (3000N)
Speed (mm/sec) 10mm/sec
IP Rating (Protection Class) - IP54 Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment. Water splashing against the enclosure from any direction shall have no harmful effect
Operational Temperature -13F - +149F
Noise <45db
Limit Switch Inner
Current 4.5A/7.6A
Cycle 20%

All orders ship within 1 business day of purchase. We use multiple shipping carriers to bring you the fastest shipping at the best prices!

If you need any additional information regarding our shipping policy please refer to our Shipping Policy page for additional information.
