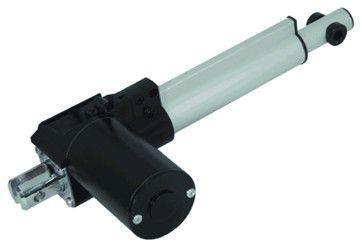

Everest 20" Inch Premium Linear Actuator with 225 lbs Lift


Input Voltage 12V DC
Stroke (Movement) 20"
Force 225lbs (1000N)
Speed (mm/sec)

40mm/sec

IP Rating (Protection Class) - IP54

*Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment

*Water splashing against the enclosure from any direction shall have no harmful effect

Operational Temperature -13°F ~ +149°F
Noise <45db
Limit Switch Inner
Current 4.5A/7.6A
Fully Retracted 26 1/2"
Full Extended 46 1/2"
Cycle 20%
Warranty

12 Month
