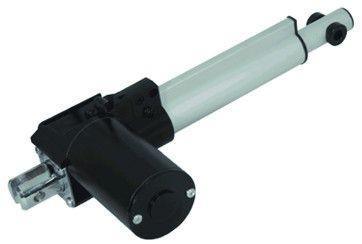

6" Inch Premium Linear Actuator with 225 lbs Lift

Input Voltage 12V DC
Stroke (Movement) 6"
Force 225lbs (1000N)
Speed (mm/sec)


IP Rating (Protection Class) - IP54

*Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment

*Water splashing against the enclosure from any direction shall have no harmful effect

Operational Temperature -13°F ~ +149°F
Noise <45db
Limit Switch Inner
Current 4.5A/7.6A
Fully Retracted 13"
Full Extended 19"
Cycle 20%

12 Month
